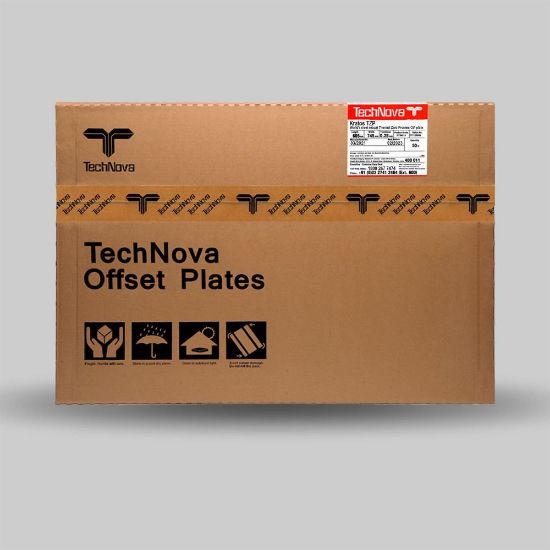

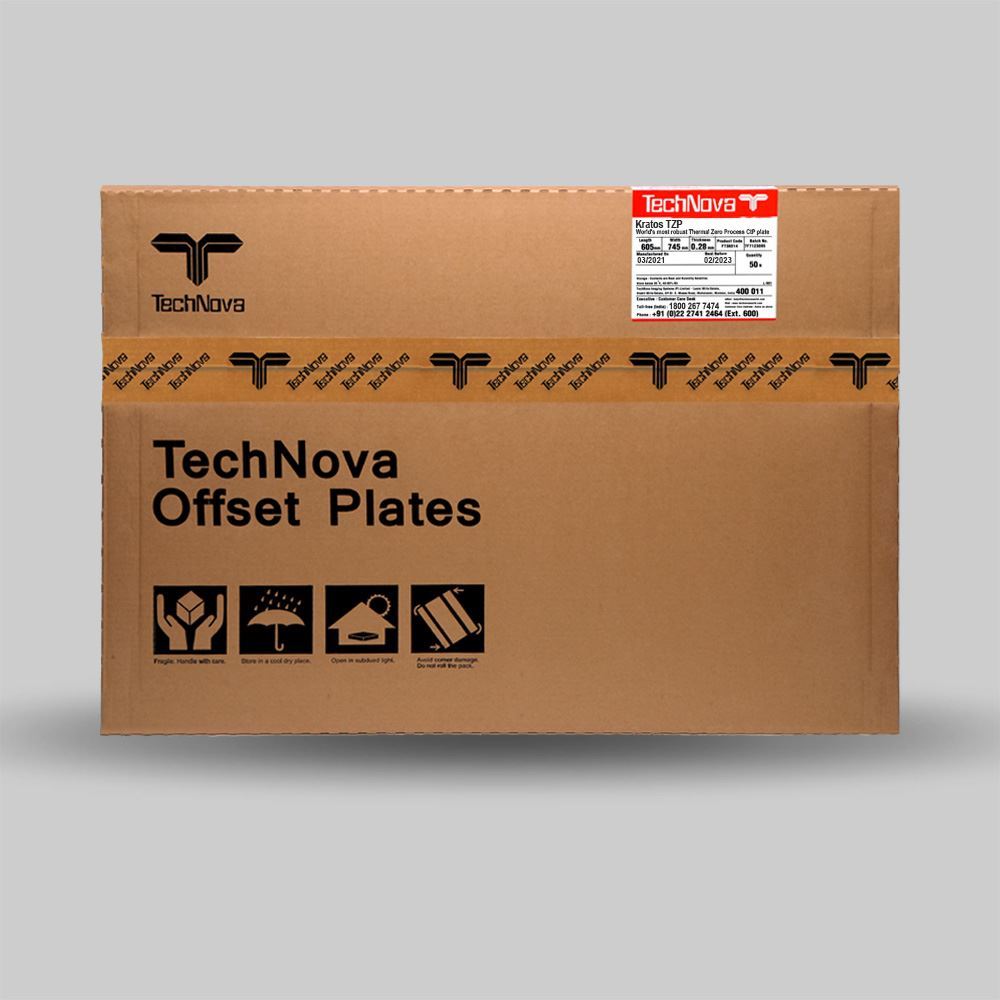

Kratos TZP

World's most robust Thermal Zero Process, Direct-On-Press digital plate

Kratos TZP is the most robust thermal direct-on-press digital plate ideal for long-run printing applications.

It requires very low exposure compared to conventional thermal plates and is fully compatible with UV ink printing.



    • Eliminates the use of processor & developing chemistry, making it an eco-friendly system
    • Ideally suited for long-run UV ink printing without post-baking
    • Perfectly compatible with alcohol-free founts; enables you to “Go Green” without the fear of plate failures
    • Fast clean-up properties on the press; minimises start-up waste & machine downtime
    • Excellent image contrast compatible with Vision Punch & Bend devices
    • Excellent dampening latitude; allows high ink density and low damp levels
    • Accredited for use with all the leading brands of thermal plate-setters
    • Easy-to-image  under convenient office lighting conditions
  • Storage & Handling : 10ºC - 25ºC; 40% to 60% RH. If the storage temperature differs significantly from plateroom temperature, the plates should be acclimatized in their original package for at least 12 hours before unpacking. Always open the package under recommended room illumination.

    Recommended plateroom conditions: Operating temperatures 23ºC (±2ºC); 40% to 70% RH.

    Shelf-life : 12 months (from date of manufacturing) under recommended storage conditions

  • Products specifications
    Attribute nameAttribute value
    Plate TypeThermally exposed, negative-acting, laser plate for all offset presses
    CoatingTwo-layer system, infrared sensitive, negative-acting, high speed
    Gauge (mm)0.28 mm , 0.30
    Spectral Sensitivity830 nm
    Exposure Energy110 -130 mJ/cm2
    Resolution1% - 99% dot @ 200 lpi
    Image ColorGrey
    Processing StepsZero Process ; Direct on Press
    Run-lengthUp to 200,000+ impressions; Up to 50,000+ impressions using UV inks (actual run-length may vary according to press, ink and paper conditions)
    Room IlluminationOffice light (avoid daylight and direct sunlight on plate)

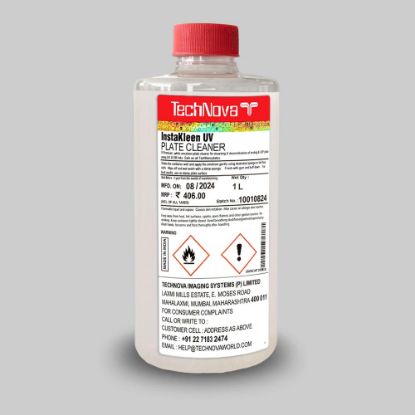

    Plate CleanerInstaKleen UV (for UV inks); InstaKleen CtP (for conventional inks)
    Fountain SolutionAkronGold, TotalCare Range & CrownJewel Range
    Press WashHMK Wash 1, Artemas Wash 60, AmberWash WM & NovaWash Premium
    Press CareDeepKleen Shampoo, CalKleen, LubriKleen, GlazeKleen, GlazeKleen Aqua, Blanket Vitaliser, Blanket Refresh, CylKleen

Based on your selection, you may be interested in the following items
Innovate, interact and optimizes. The Apogee workflow software philosophy with which you stay ahead of the competition.
Prepress workflow, Digital workflow, Workflow automation
Image quality enhancement software for web, print & mobile applications.
color
General purpose, low odour blanket & roller wash
presswash, press wash, zero aromatic, low odour, plate safe, general purpose, blanket & roller wash, water miscible
FOGRA & Baldwin approved water miscible press wash
baldwin approved, aliphatic, 60 degree flash point, automatic device, artemas wash, manual application, fogra approved, water miscible
FOGRA & Baldwin approved water miscible press wash
water miscible, blanket & roller wash, fogra approved, baldwin approved, press wash, 80 degree flash point, aliphatic wash
Specially formulated, end of day conditioner for Offset rubber blankets
reconditioner, blanket wash, blanket maintenance
Premium reviving and conditioning solution for offset press blankets
reviving solution, press blankets, blanket maintenance, routine maintenance, conditioner
Rapid action repairing gel for blanket punctures & low spots
substrate repair, blanket maintenance, low spots repair, repairing gel for blanket, blanket puncture repair
Supreme rejuvnator, deglazer & conditioner for offset press blankets
blanket maintenance, blanket care, blanket deglazing, blanket rejuvenator, blanket vitaliser, substrate repair, conditione
Premium calcium remover gel for rollers & blankets
calcium removal, care product, roller maintenance, water washable, roller care
Deep penetrating paste for rapid colour changes
roller care, rapid colour change, deep penetrating paste
Premium cleaner for impression cylinder
premium, cleaner, impression cylinder cleaner
Specialty emulsion cleaner suitable for cleaning of cloth-covered damper rollers
press wash, specialty emulsion cleaner, manual cleaning, automatic cleaning, damper rollers, roller wash, presswash
Premium deep cleanser for restoration of roller surface
deep cleaning, restoration of roller surface, improve ink acceptance, ink transfer, roller smoothness, roller care, cleaner, premium
Premium, white emulsion plate cleaner & conditioner for CtP & Analog plates
digital plate, plate cleaner, plateroom chemical, plateroom chemicals, analog plate, conditioner, premium

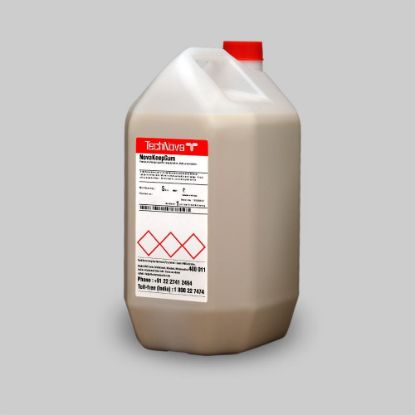

Premium long duration storage gum for plate preservation
plate preservation, storage gum, finishing gum, long duration, premium
Fountain solution additive to be used in place of IPA
alcohol dampening, integrated dampening, sheet-fed press, fountain solution additive, isopropyl alcohol, ipa

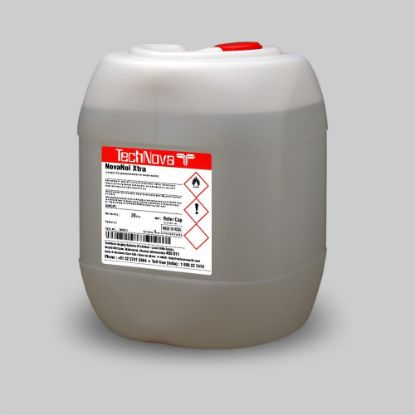

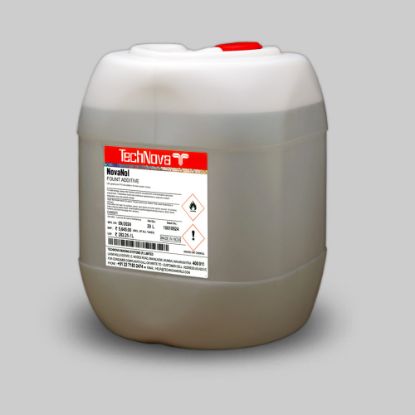

Litho grade pure IPA for printing to be added in fountain solution mixture
