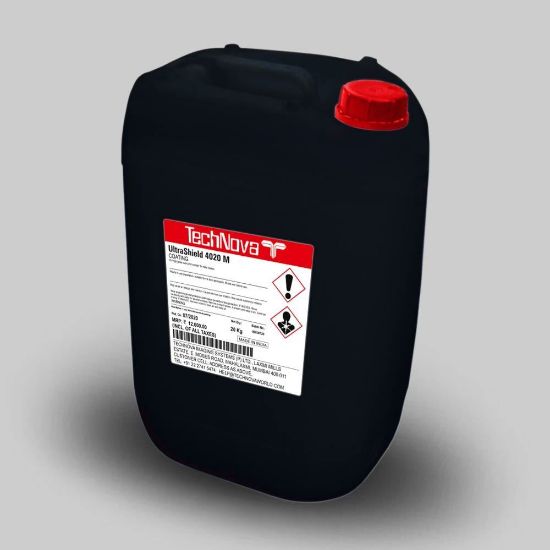

UltraShield 4020 M

Very high gloss coating for Roller coater application

UltraShield 4020 M is a high performance, very high gloss UV curable overprint varnish suitable for inline and offline roller coater applications. The product exhibits good slip properties.

    • Excellent flow property;for good lay
    • Specialty polymer technology; optimum transfer even on high speed machines
    • Balanced formulation; gives good machine stability and thorough curing
    • Right surface additives; for excellent rub resistance
  • Coated Paper / Board

    Uncoated Paper / Board

    Synthetic Paper

    +++

    ++

    +++

    +++  Highly Recommended

    ++    Recommended

    +      Workable

    •   Ready to use preparation
    •   Stir well before use
    •   Application via inline roller coater for UV curing inks and offline roller coater for conventional inks
    •   A maximum of 3-5 gsm is required for getting optimum results
    • Storage & Handling:    Protect from direct sunlight. Store at temperature below 30oC in a dry & well ventilated area. Avoid direct exposure to sunlight. Keep containers tightly closed when not in use.
    • Shelf-life: 6 months from the date of manufacture
    • Packing: 20 kg containers and bulk options
    • Caution: Avoid contact with skin and eyes. The use of hand gloves and safety glasses are recommended
  • Curing condition

    • Lamp energy: UV lamp – 80 watts/cm
    • Machine speed:  20 mts/min

    Technical data

    •   Appearance: Pale straw liquid
    •   Viscosity: 47 ± 3 seconds at 30oC by B4 Fordcup
