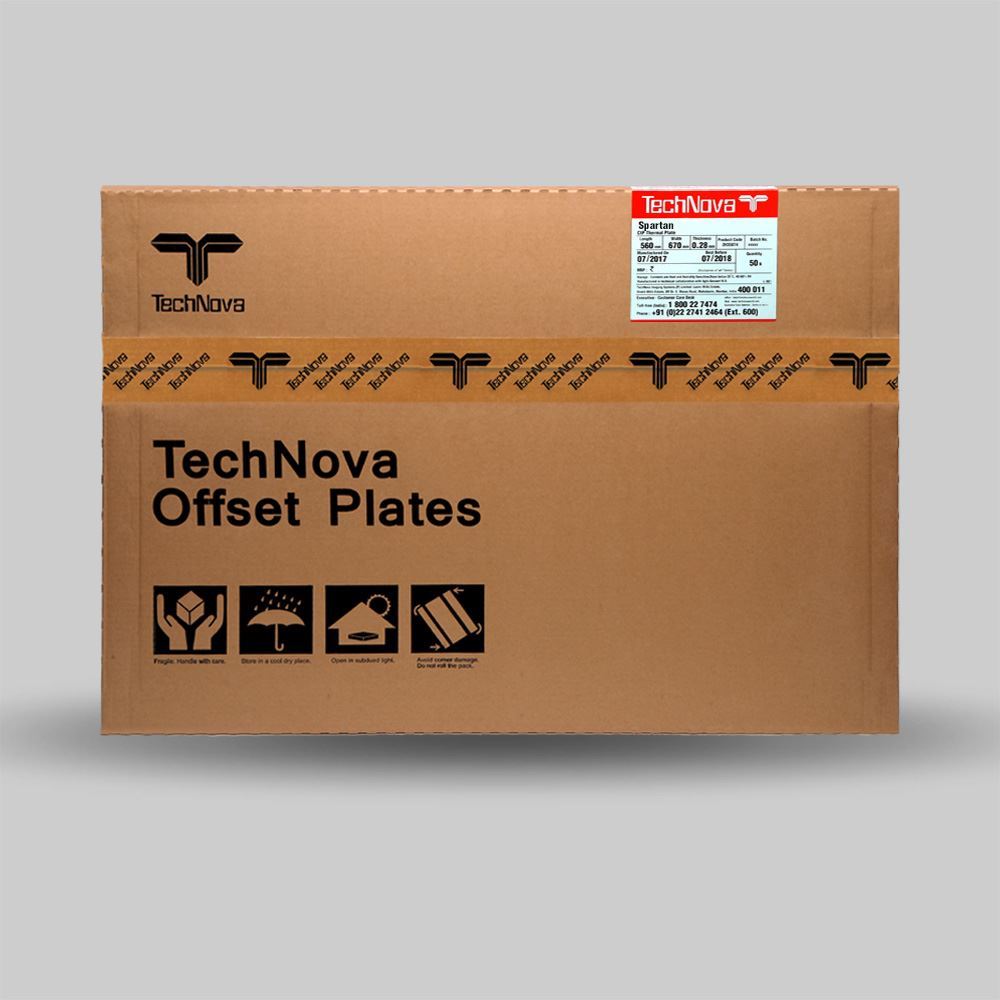

Spartan

Third Generation UV CtP Plate

Spartan is a third generation UV CtP plate especially designed for hi-resolution, hi-speed imaging on the latest UV CtP plate setters using Ultra-Violet laser diode technology. It is significantly superior to the second generation UV CtP plate. Spartan ensures reproduction of 2%-98% dots at 200 lpi and is FM screening capable.

(Note: Not recommended for use as Analog PS Plate)

    • Significantly faster as compared to second generation UV CtP plate yielding high throughput.
    • Excellent Image contrast facilitates easy inspection
    • Better exposure and processor latitude deliver consistent results
    • Very good resistance to alcohol and press chemicals ensuring robust press performance
    • Compatible to baking process with Thermotect/ RC510 to increase run-length
    • Each plate carries a unique identification number for quality assurance
    • Storage & Handling : 20oC - 25oC; 30% to 70% RH. If the storage temperature differs significantly from plateroom temperature, the plates should be acclimatized in their original packaging, for at least 12 hours before unpacking and processing the plates. Always open the package under recommended room illumination.
    • Recommended plateroom conditions : Operating temperatures 23oC (±2oC); 40% to 70% RH.
    • Shelf-life : 18 months (from the date of manufacturing) under recommended storage conditions.
  • Products specifications
    Attribute nameAttribute value
    Plate TypeUV CtP Positive-working
    SubstrateLitho-grade aluminium, electrochemically grained and anodized
    Gauge (mm)0.15, 0.20 , 0.28, 0.30
    Width (mm)1230
    Safe lightYellow Safe light & UV protection on windows
    Spectral Sensitivity405 nm Ultra-Violet laser diode compatible
    Image ColorBlue
    Run-lengthUpto 100,000 impressions (Actual run-length may vary according to press conditions, ink & paper quality)
    Exposure Energy40 mw to 55 mw
    Manual ProcessingNot recommended
    Machine ProcessingSpartan / LSP 19 Developer with recommended dilution to be used on processors with chiller unit
    DeletionNovaDelete P / Jiffy Deletion Fluid
    FinishersUnifin/RC795
    Baking SolutionThermotect/RC510
    Plate CleanerlnstaKleen CtP, Instakleen HD (for Baked plates)
    Storage after ProcessingUnifin for storage up to 24 hours; NovaKeepGum for storage up to 3 months.
    Press WashCompatible with all recommended washes from TechNova
    Press CareCompatible with all recommended Presscare solutions from TechNova
    Fountain SolutionCompatible with all recommended fountain solutions and fount additives fromTechNova, except IPA substitutes. Post baking plates are compatible with IPA substitutes.
